Adapted for Stair runs

Balcony Systems Solutions Ltd introduces a new 72mm X 72mm Newel Post that now allows the Balcony System to be used on stair runs easily.

The Balcony System Glass Balustrade is a unique glass balustrade system, It is designed in a way whereby it relies on the strength of the handrail and thus allows wider spans of glass than any other balustrade system.

The Balcony 1 System Balustrade has a 70mm diameter handrail and with these new 72X72mm square “Newel post” can be used on stairs.

The principle of the system remains the same using the combined strength of the precision engineered handrail profiles and the strength of the glass.

More about glass balustrades for stairs >

So how does it work?

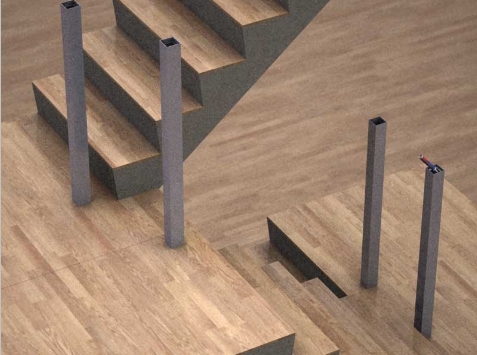

72 X 72mm Newel posts are installed at the top and bottom of the stair runs. If the run is more than 2.7m then additional posts need to be installed in the middle of the run.

newel posts 21212.1

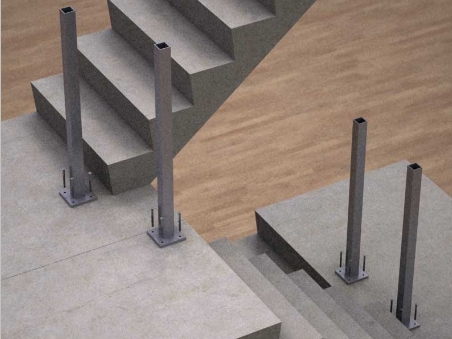

The newel posts are made from two parts; a primary steel post that is installed at the first stage so that the base plate can be covered by the finished floor.

primary post 21212.1

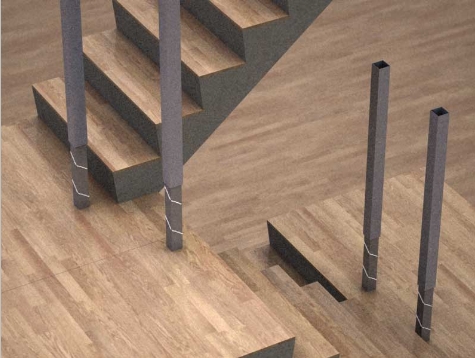

This primary post is covered by the system newel post which is a 72mm X 72mm square post that slides on top of the primary post.

primary post 21212.2

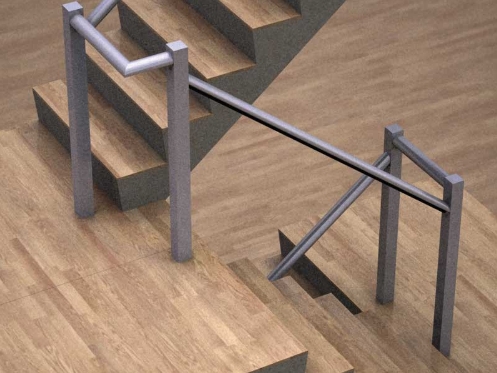

The handrail is then fixed to these newel posts

handrail 21212.1

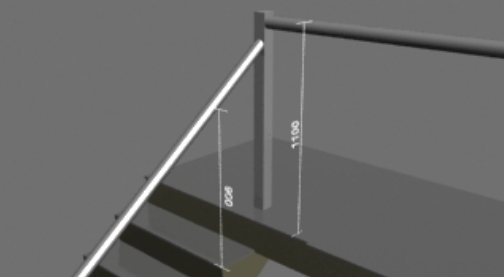

The handrail height on the stairs is 900mm and on the landing the height needs to be 1100mm, this newel posts system allows for one side to be fixed at 900mm high and the other at 1100mm.

The landing the height needs to be 1100mm, this newel posts system allows for one side to be fixed at 900mm high and the other at 1100mm.

newel posts system 21212

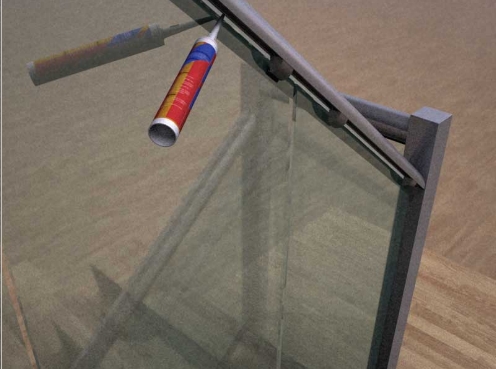

Glasses are fixed between the handrail and the bottom rail with clean lines that do not have any ugly claps or lugs.

handrail solution 21212.2

handrail solution corner 21212.1

glass handrail solution 21212.2

A beautiful combination of strength and aesthetic posts and handrail solution.

Video:

In this video you can see all the above information explained:

How the Balcony Systems can be used on stairs – http://www.youtube.com/watch?v=0eiuz1E-1JU

A beautiful combination of strength and aesthetic posts and handrail solution.
