Aerofoil Glass Balustrade System

The Aerofoil System has a stylish wing shaped handrail that allows runs of up to 4.0 metres without the need for posts when fixed between walls. When posts are required, they can be up to 2.1m apart.


Back to TypesGetting a QuoteWhen to OrderPlacing an Order

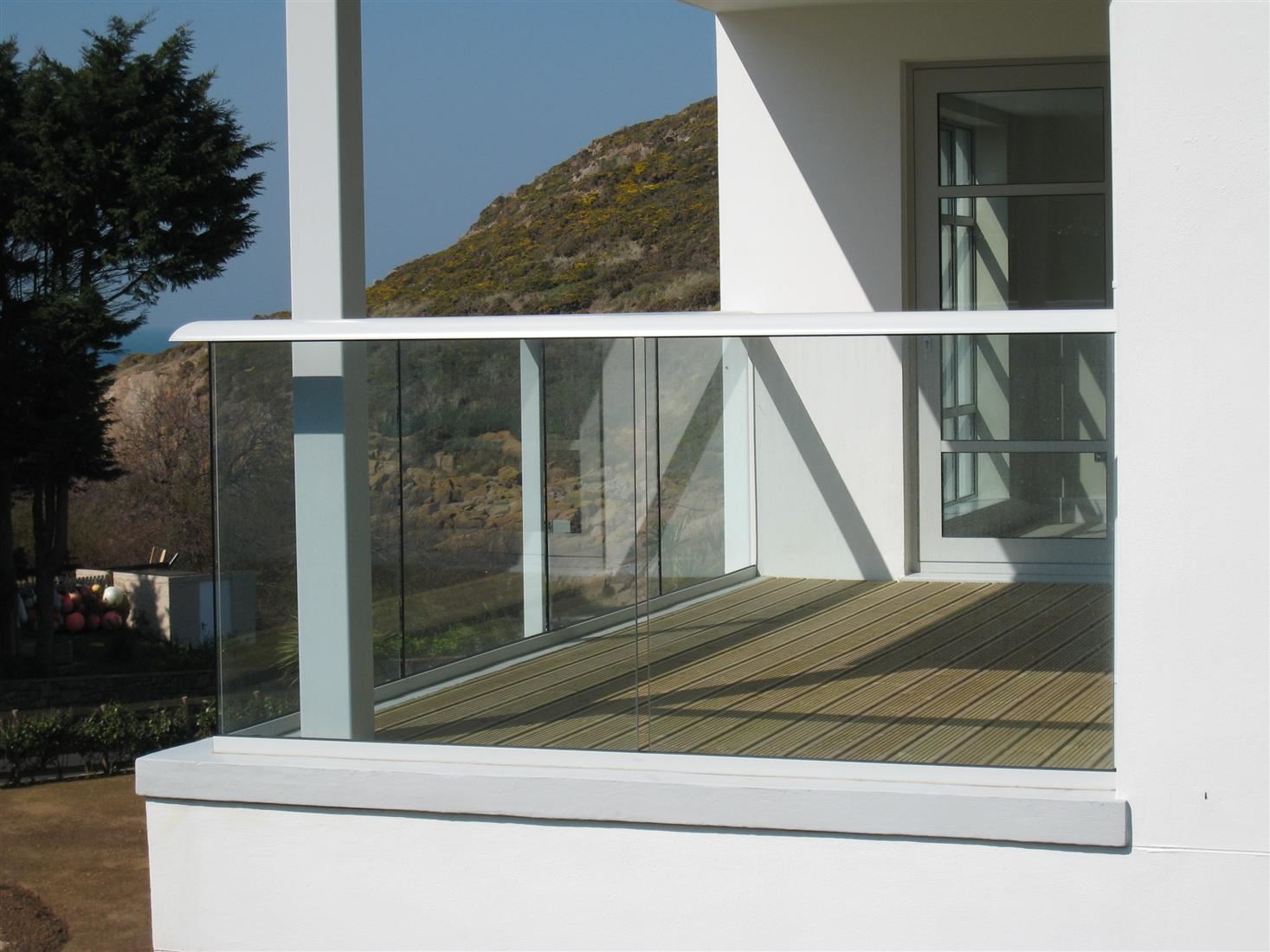

Corner of a White Aerofoil Glass Balustrade overlooking a mountain view



Aerofoil System Technical Parameters:

Max Structural Length Without Posts: 4000mm

Max Post Spacing: 2100mm

Handrail Dimensions: Aerofoil shape - 116mm deep x 51mm sight line

Post Dimensions: Rectangular 66mm deep x 44mm sight line

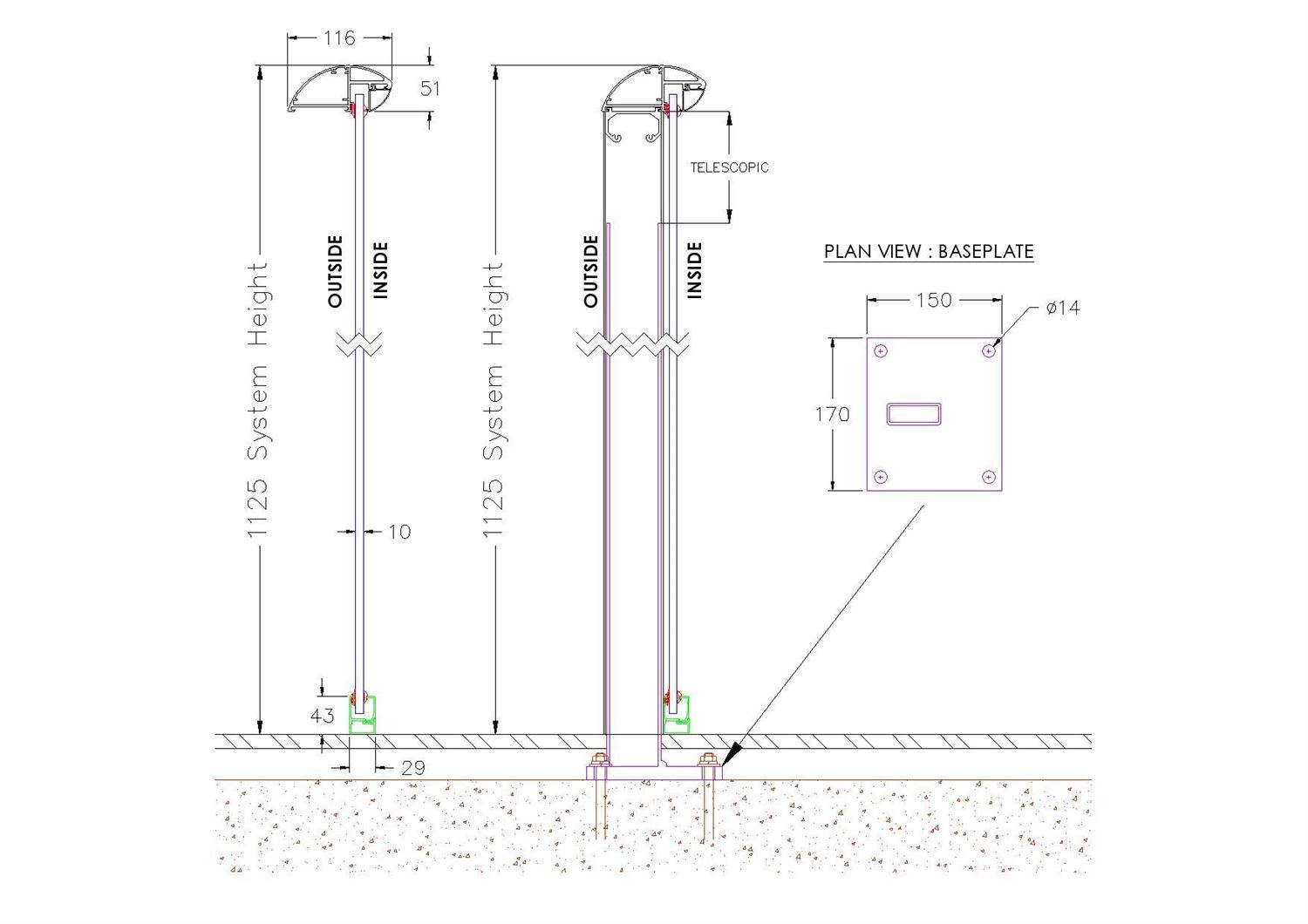

Aerofoil System Typical Section and Post Section Drawings:


Aerofoil System Typical Section and Post Section Drawings



Order a Brochure Get a QuoteContact Us


(01342 410 411 - Telephone Lines Open: Mon-Fri 9:00-18:00)



Examples of Aerofoil Glass Balustrade Systems:

Royal Chrome Aerofoil Glass Balustrade overlooking a clear view of a town White Aerofoil Glass Balustrade overlooking a gorgeous meadow

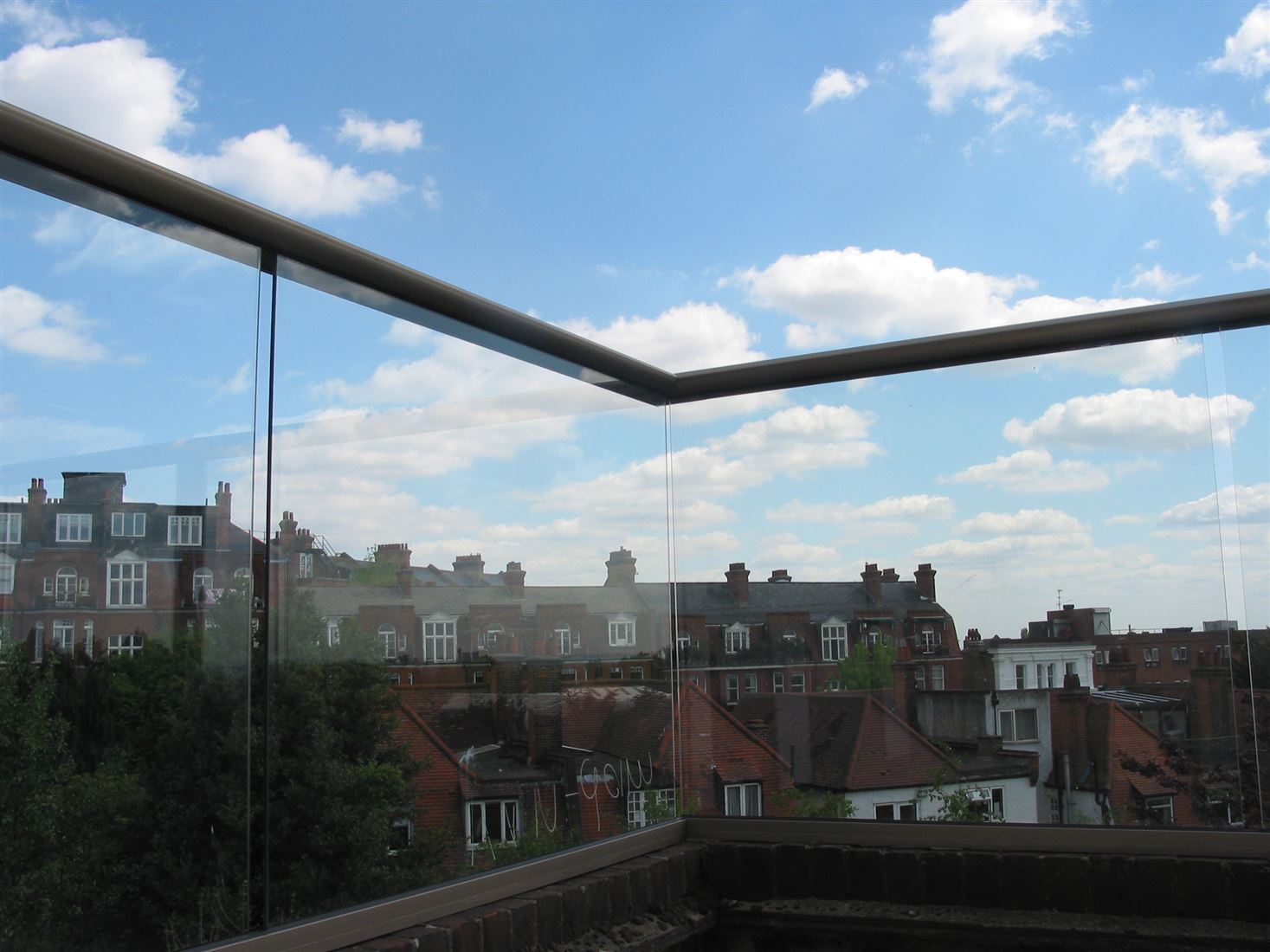

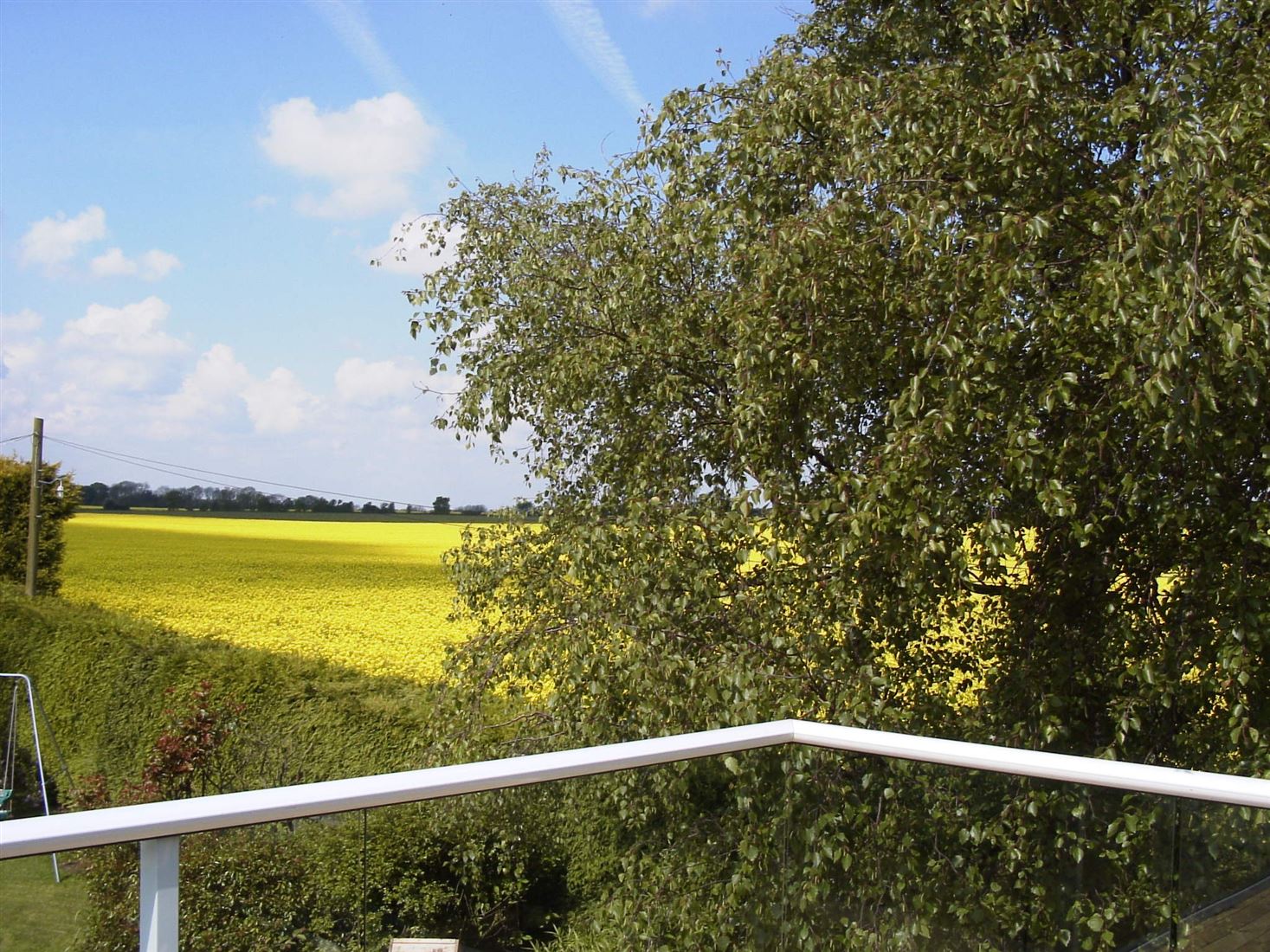

Royal Chrome Aerofoil Glass Balustrade with a Town View White Aerofoil Glass Balustrade with a Meadow View

A Bronze Aerofoil Glass Balustrade overlooking a serene river view A Royal Chrome Aerofoil Glass Balustrade installed on a coastal home with a view of a rainbow

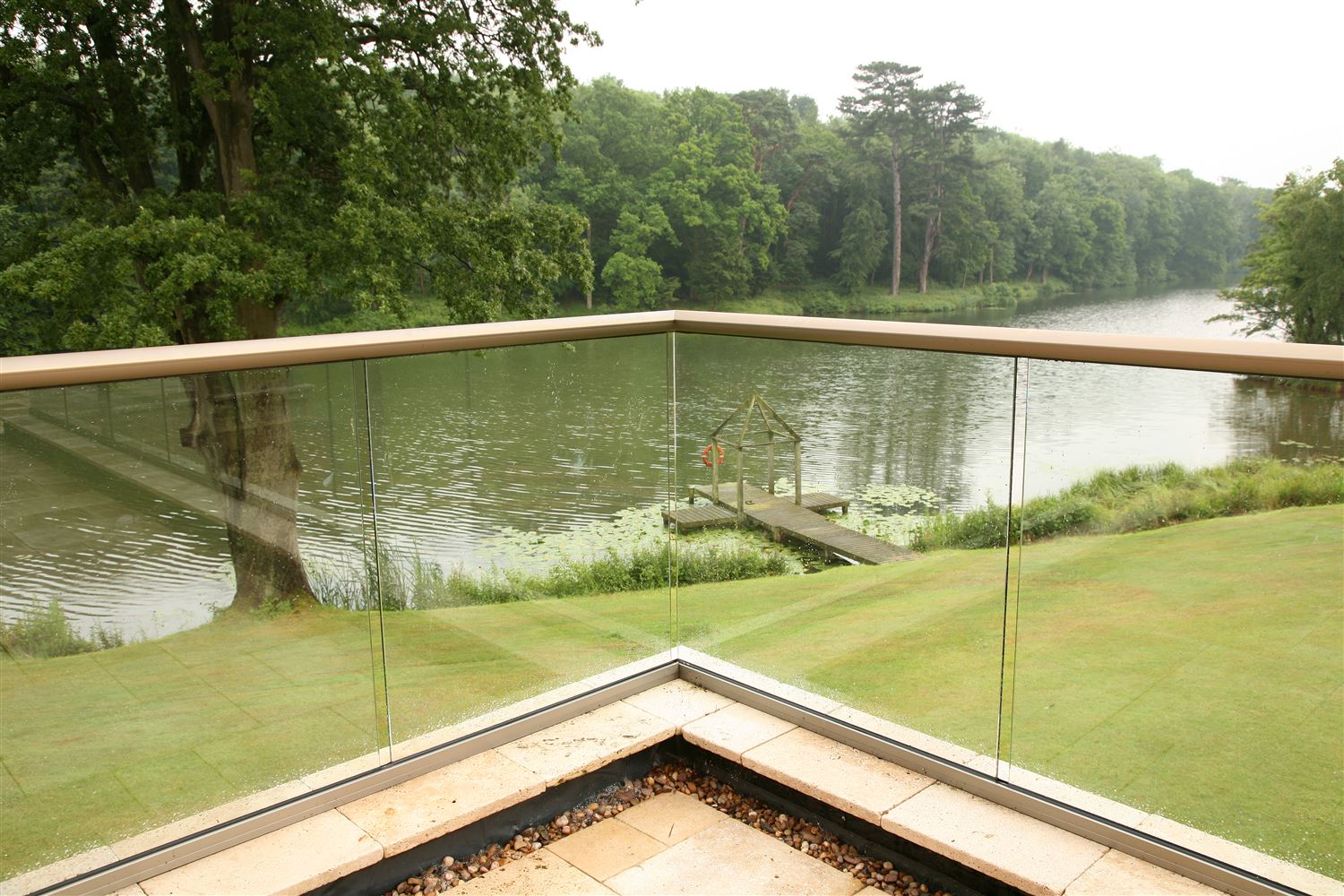

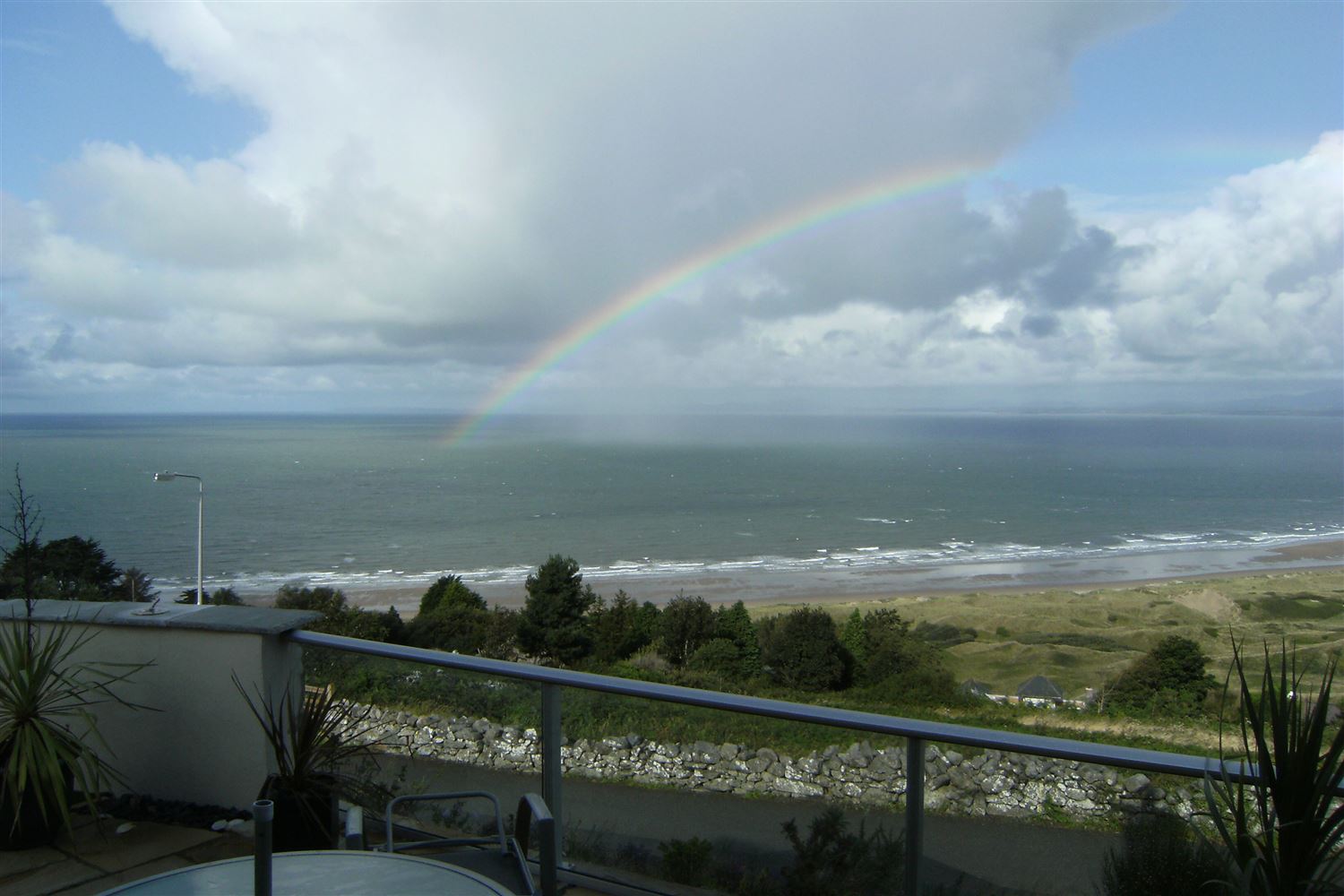

Bronze Aerofoil Glass Balustrade with a River View Royal Chrome Aerofoil Glass Balustrade with a Sea View
