Aerofoil Privacy Screens Installation

You will need:

  • Appropriate fixings for the wall
  • Drill for wall fixings
  • Spirit level
  • Tape measure
  • Appropriate lifting equipment and installation platform
  • Rubber mallet
  • Soapy water

Choosing the correct Fixings

Need an Installer? Click here

Installation and documentation

The installation video and PDF downloads below are detailed, illustrated step-by-step guides. Technical specification data is also included

Infinity Screen - Aerofoil master installation guide page

Specifications

Drawing - Post Section

Structural Calculations



infinity privacy screen passthrough privacy screen

The Infinity balustrade system can also be ordered & made to be installed above finished floor level. In this case the system is supplied with some changes; the base plates and posts are fitted on top of the finished floor, the bottom rails are manufactured to suit a base plate cover, The posts sleeves are supplied slightly shorter to accommodate the base plate height & a base plate cover is supplied. The below shows how the sequence of installing the base plate cover onto the post.

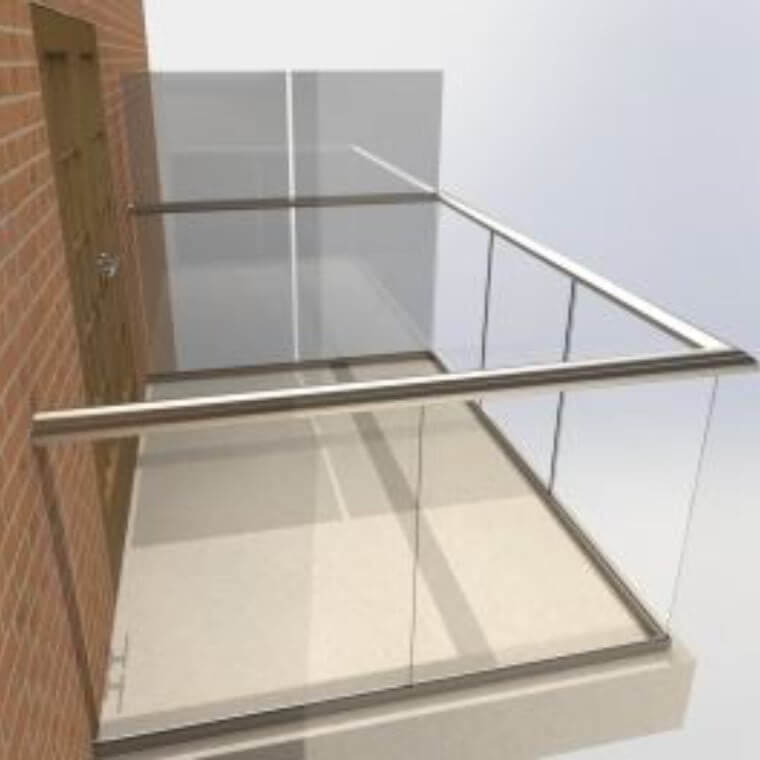

The Infinity system and Aerofoil Systems can be used in conjunction with each other, and their handrails are designed to connect together. This can be either on a corner or straight joint.

balcony 1 privacy screen

Aerofoil Infinity Screen Parameters

  • Glass options available: satinised (opaque), clear and tinted.
  • Height limits: Max 1800mm.
  • Length limits for normal wind loads: Max 2750mm without posts, 1925mm post spans.
  • Length limits for severe wind loads: Max 2300mm without posts, 1600mm post spans.
  • Colour options: Silver anodised (matt) or Royal Chrome anodised.

Aerofoil Infinity Screen Details

parameters for Aerofoil privacy screens
