SEMI-FRAMELESS GLASS BALUSTRADE

Tech Specs  |  Installation  |  Gallery  |  Projects

The SG10 system comes in two options Semi-Frameless and Fully Frameless. The Semi Frameless has only a handrail on top and uses 15mm clear toughened glass. The handrail options are either a beautifully designed elliptical handrail or a small rectangular handrail. The SG10 frameless system allows for uninterrupted views without limitation of lengths or sizes and requires no posts at all.

GET AN ONLINE QUOTE

Price per meter from £399 + VAT

Choose below the number of sections on your balcony for an instant online quote.

1 SECTION2 SECTIONS3 SECTIONS4 SIDED5 SIDEDCURVED

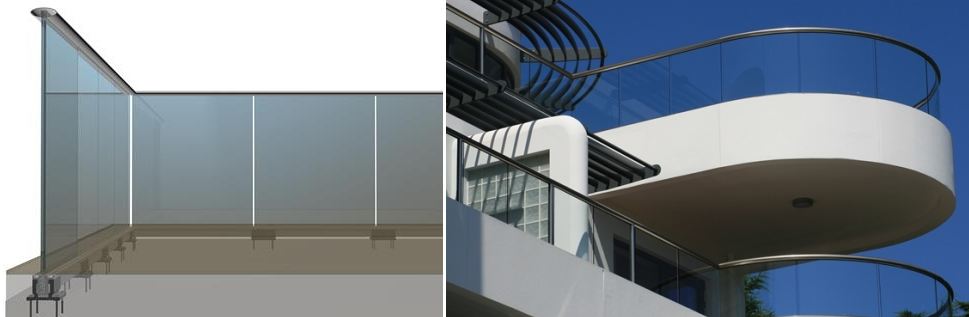

semi frameless glass balustrades

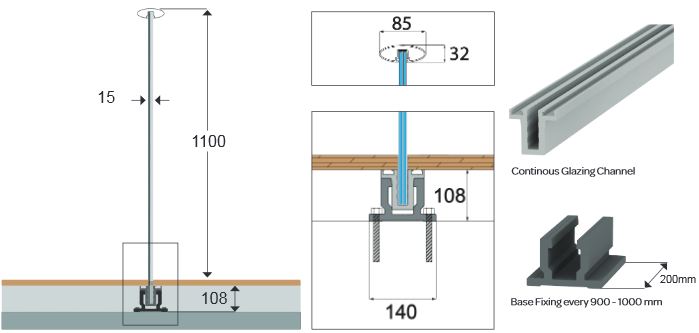

SEMI FRAMELESS GLASS BALUSTRADE SECTION

Glass Balustrade Semi Frameless Section

SEMI FRAMELESS GLASS BALUSTRADES INSTALLATION

The below is a concise summary of how to install the Balcony SG10 Semi-Frameless System.

  1. Install the base track in the position you require, fixing it firmly to the structure.
  2. Make sure the rail is closed off on the edges and seal any gaps on the end or where there are joins in the base track. (the resin that holds the glass is liquid and you want to ensure it does not have anywhere to leak out of the base track)
  3. Identify the glass panels and where they each go.
  4. One at a time place glasses in position.
  5. Use small glass packers or wedges to hold the glass vertical against the base rail.
  6. Using two small wood pieces clamp one glass to the previous to create a straight line.
  7. When all glasses are in position and lined up, place the handrail on top of the glasses.
  8. Using the glass resin provided mix the two components and carefully, and slowly pour the resin into the base track. Please note that the resin is self-levelling. Reaction time is dependent on temperature and humidity; the warmer it is the faster it will cure. The resin has quite a thick viscosity and you should plan your work so you can complete pouring areas or runs continuously before it cures. (If doing sloped runs a different resin or material needs to be used and not a liquid one)
  9. Let the resin cure for at least 24-48 hours before any contact with the balustrade.
  10. Lift the handrail up from the glasses.
  11. Silicone the underside of the handrail and replace so that it glues it to the top of the glass.
Structural Glass Balustrades - Types and Method Structural Glass Balustrades - Types and Method glass balustrades technical details TECHNICAL DETAILS
