CURVED DOOR CONFIGURATION OPTIONS

Curved Glass Doors  |  Tech Specs  |  Installation  |  Gallery  |  Projects  |  Articles  |  Reviews

You can find below a large variety of curved doors configurations to choose from. From Two sliding doors right through to eight doors in different combinations of sliding and fixed.

You can click on each of the models to see the technical details, maximum sizes and options for each. You can also click through to get an online quote for your exact size.

Product Name

3D View

Plan View

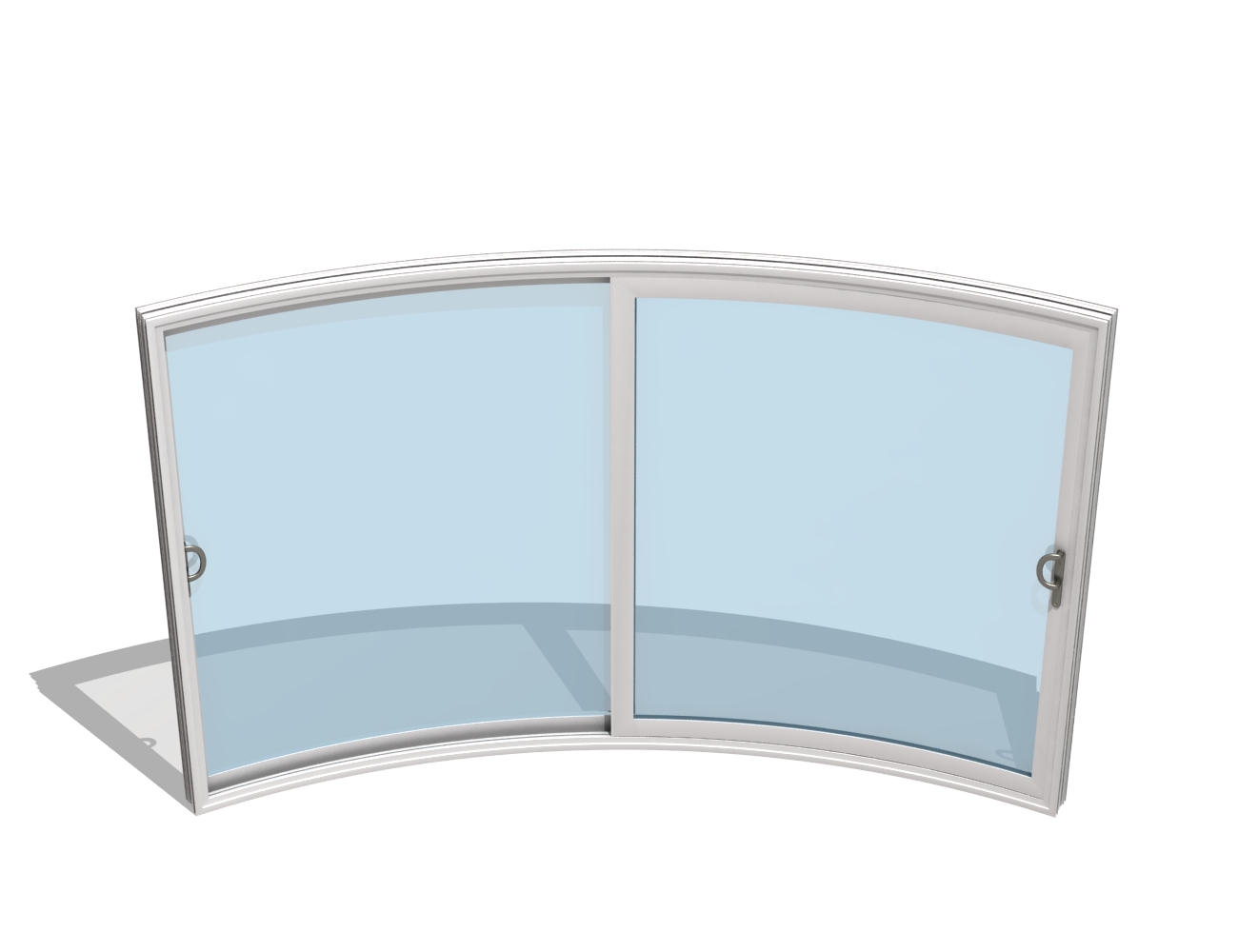

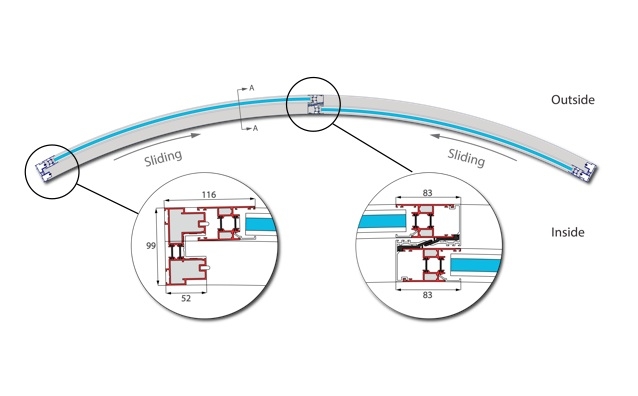

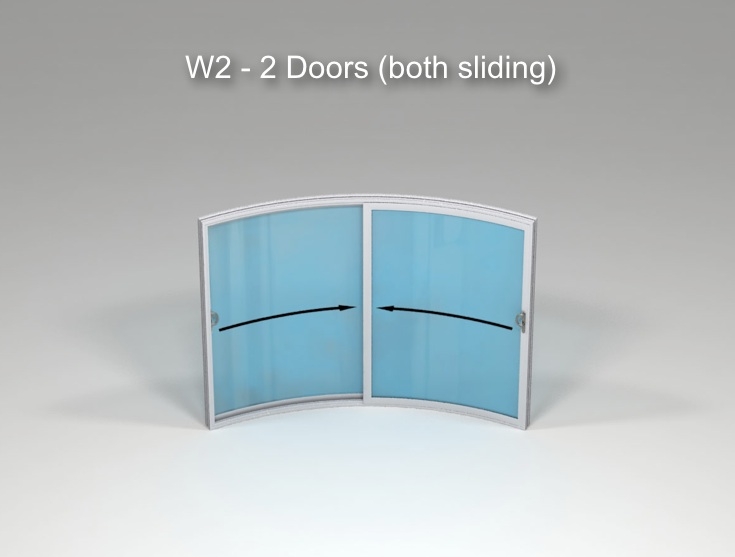

W2

2 panes/doors that both slide
(2 tracks) – appx 50% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view



Magnifying glassPlan view

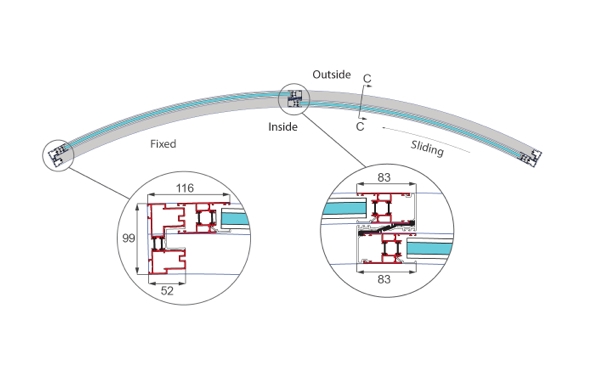

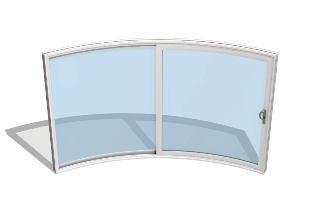

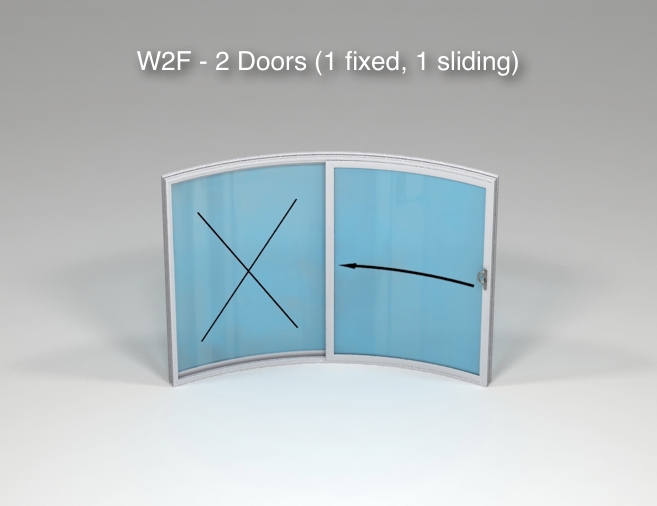

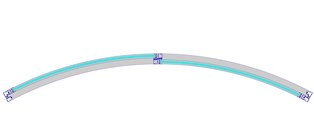

W2-F



2 doors, one fixed and one sliding (2 tracks) – appx 50% opening



Get an online quote

Downloads
Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view



Magnifying glassPlan view

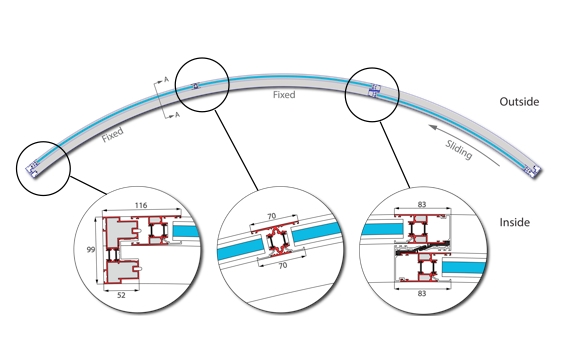

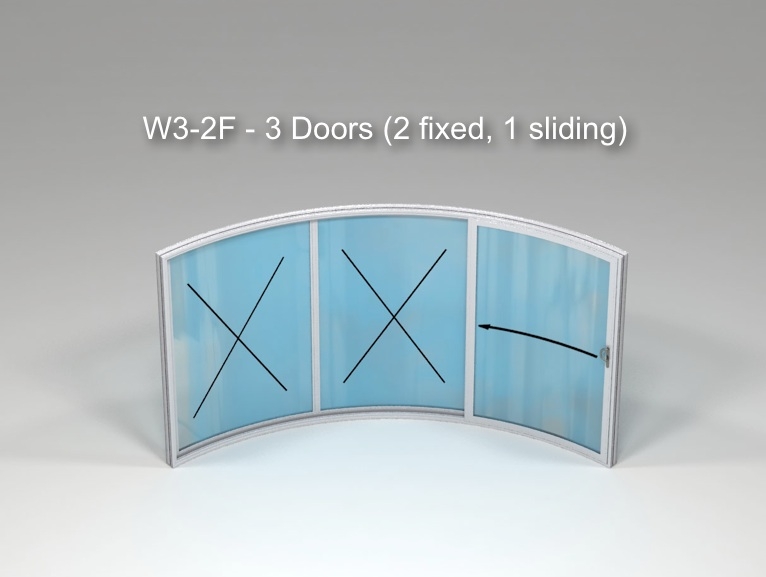

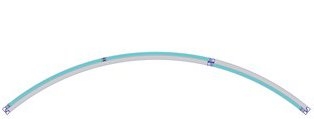

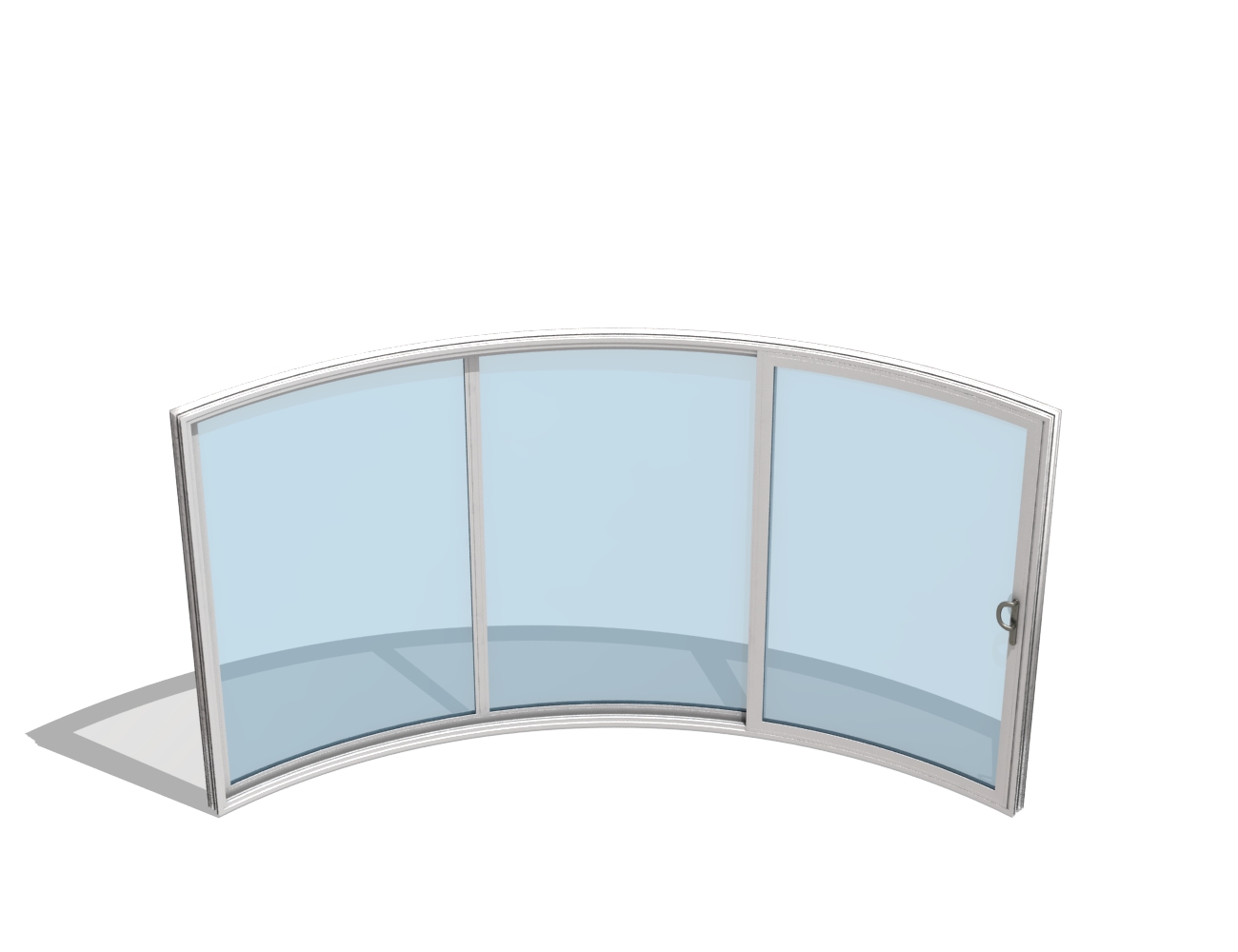

W3-2F

3 panes/doors, one that slides and two that are fixed (2 tracks) – appx 33% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view







Magnifying glassPlan view

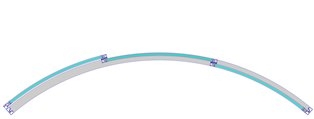

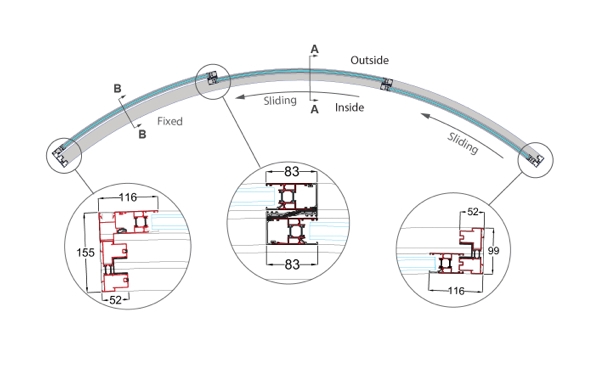

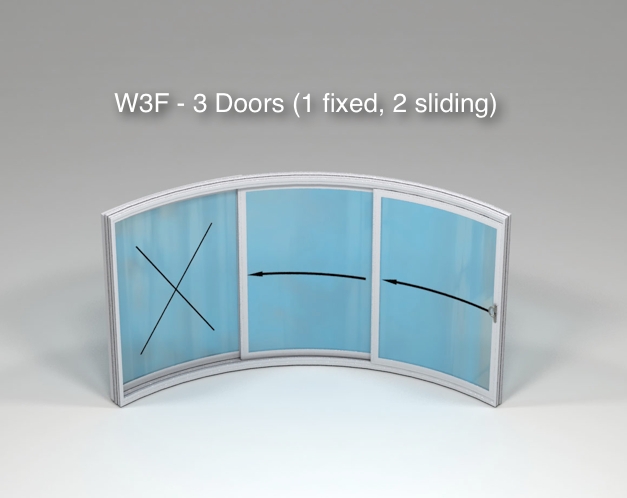

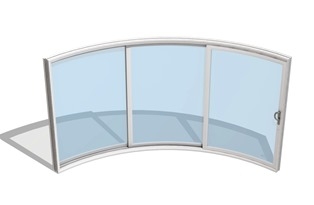

W3-F

3 panes/doors, two that slide and one that is fixed (3 tracks = 2 tracks + external fixed pane) – appx 66% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view
Magnifying glassPlan view

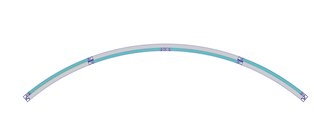

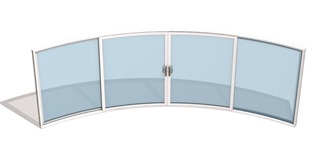

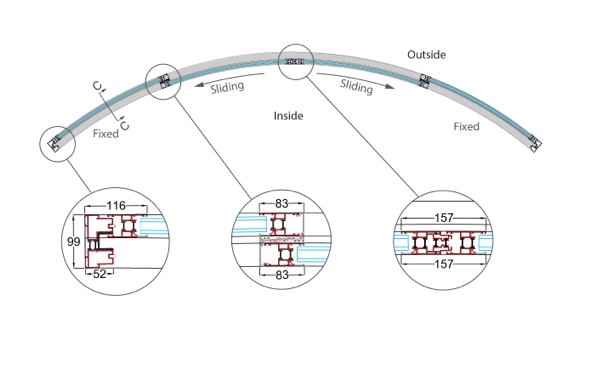

W4-2F

4 panes/doors that 2 slide and 2 are fixed – doors meeting in the middle (2 tracks) – appx 50% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing

Magnifying glass3D view
Magnifying glassPlan view

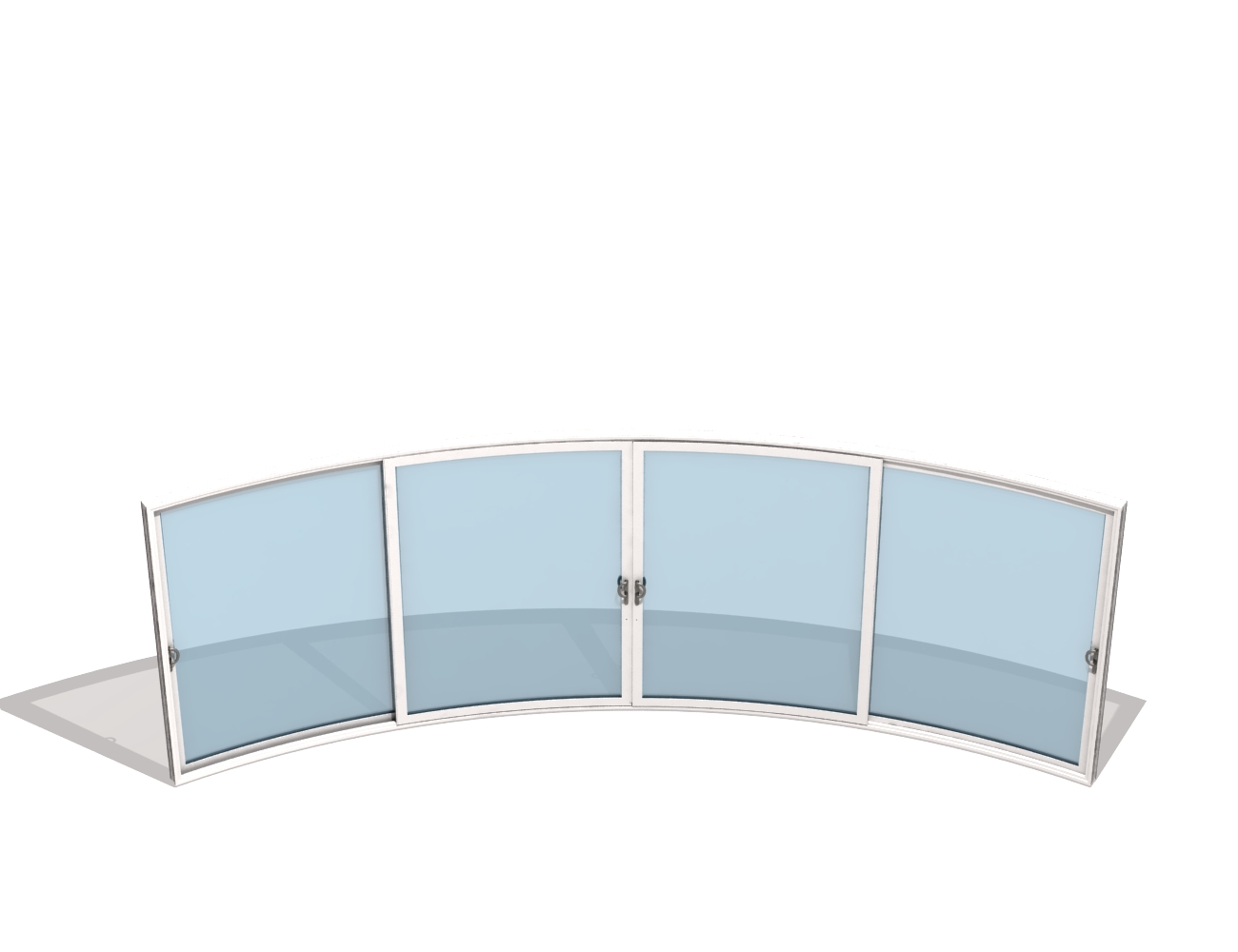

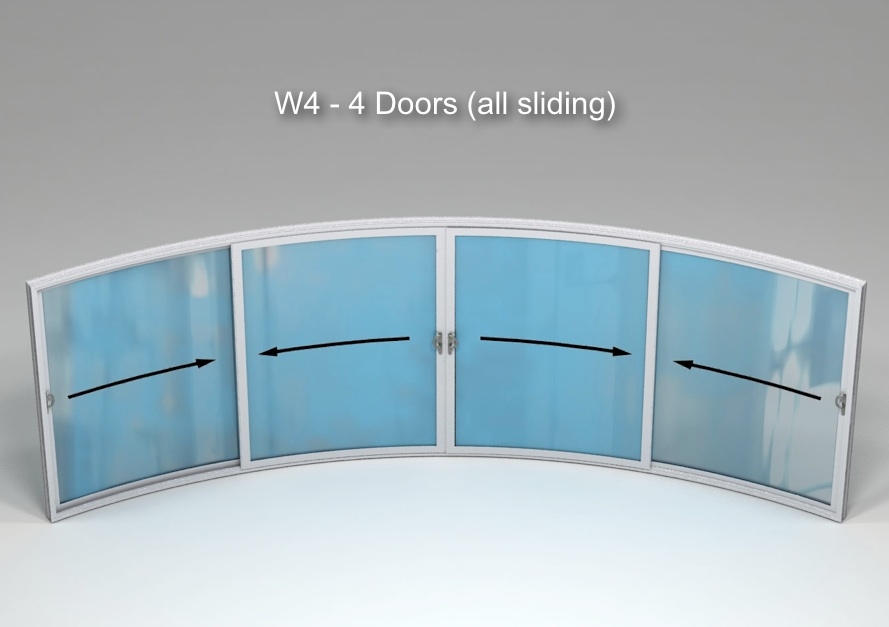

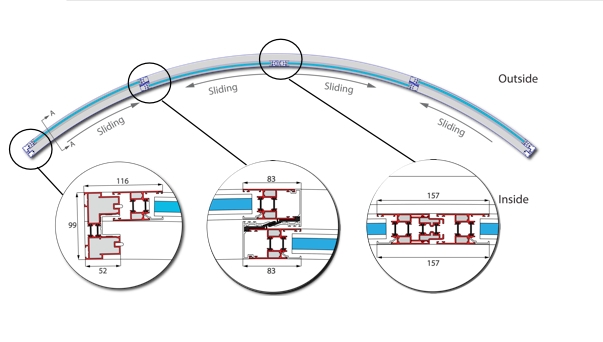

W4

4 panes/doors that all slide – doors meeting in the middle (2 tracks) – appx 50% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view







Magnifying glassPlan view

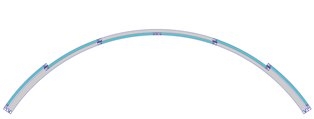

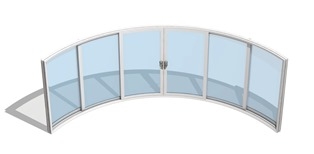

W6-F

6 panes/doors, 4 that slide and two that are fixed – doors meeting in the middle (3 tracks = 2 tracks + external fixed panes) – appx 66% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view
Magnifying glassPlan view

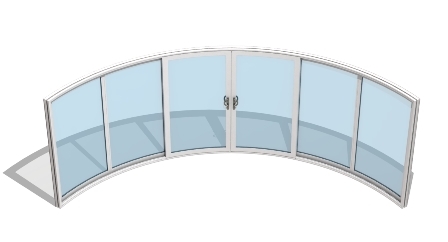

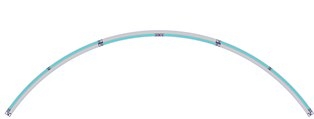

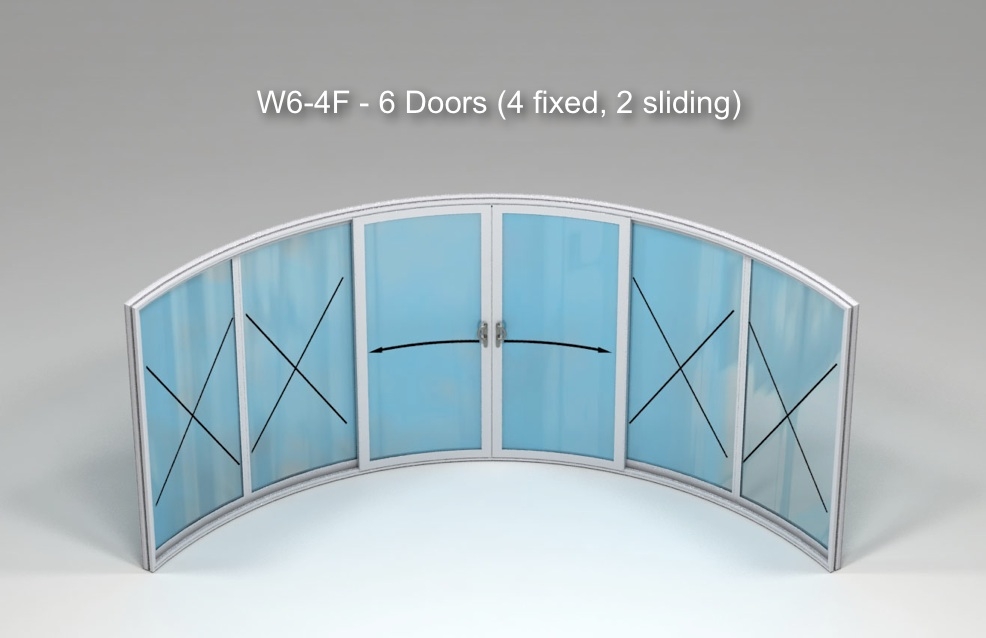

W6-4F

6 panes/doors, 2 that slide and 4 that are fixed – doors meeting in the middle (2 tracks) – appx 33% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view
Magnifying glassPlan view

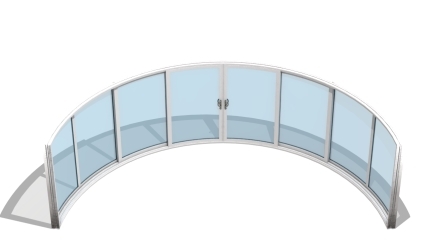

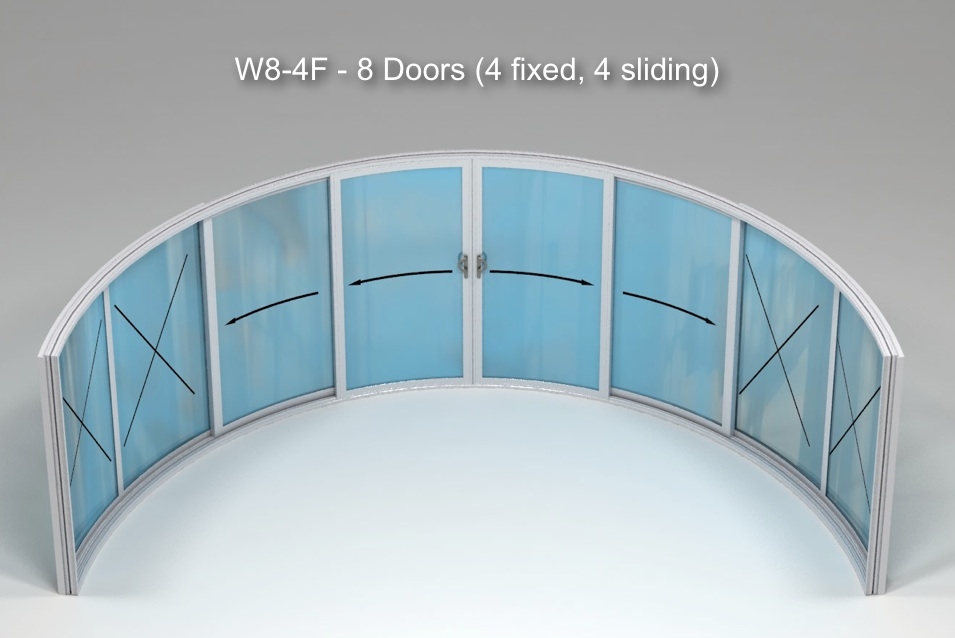

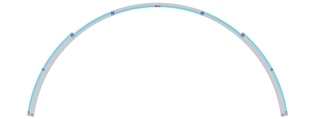

W8-4F

8 panes/doors, 4 that slide and 4 that are fixed – doors meeting in the middle (3 tracks = 2 tracks + external fixed panes) – appx 50% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view
Magnifying glassPlan view

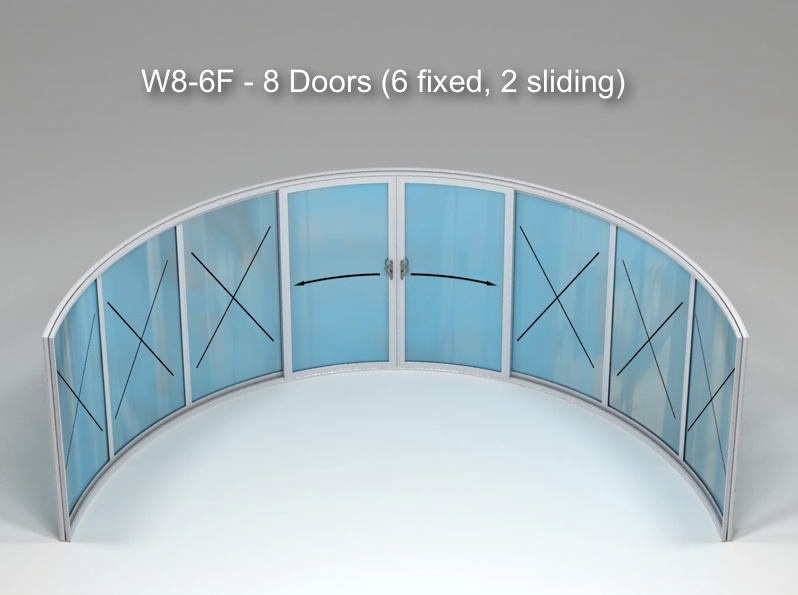

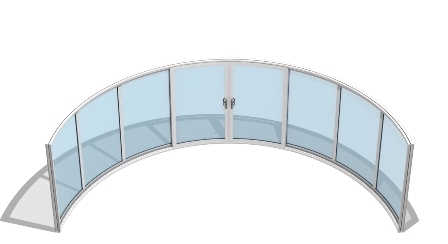

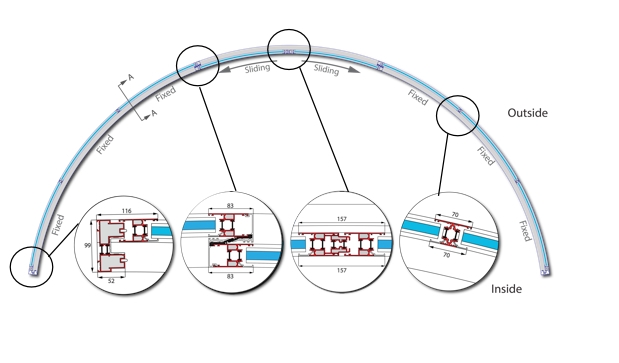

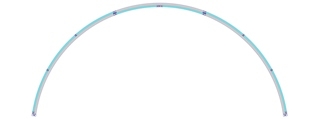

W8-6F

8 panes/doors, 2 that slide and 6 that are fixed – doors meeting in the middle (2 tracks) – appx 25% opening

Get an online quote
Downloads

Technical Details

Download generic details

Downloads Drawing
Magnifying glass3D view
Magnifying glassPlan view



Curved Sliding Doors options available

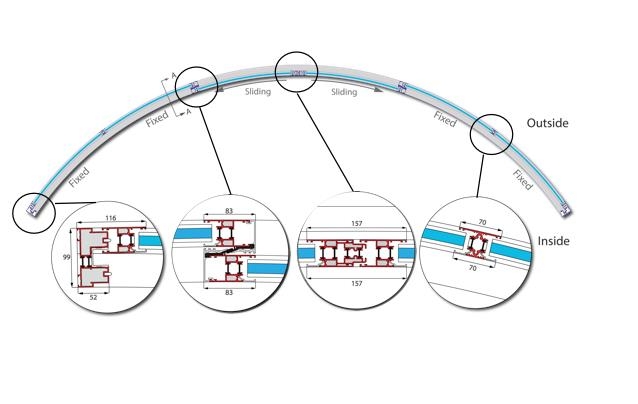

W6-4F

CURVED PATIO DOORS: A VERSATILE DESIGN SELECTION

In our curved patio doors, we aim to give you a broad set of options in their configuration, to give you as many options as possible at an affordable price.

CURVED PATIO DOORS: VIDEO

We recommend that you first watch our video for a clear and easy-to-follow presentation of the key technical details of our curved patio doors systems,

It includes each of the six standard configurations available as listed below:

CURVED PATIO DOORS: CONFIGURATIONS

Curved Sliding Doors options

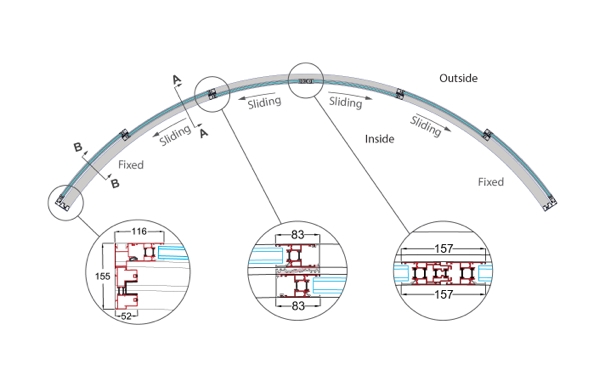

W6F

  • W2: 2 curved glass doors sliding
  • W2F: 1 fixed curved glass panel, 1 curved sliding door
  • W3F: 1 fixed curved glass outer panel, 2 curved sliding doors
  • W3-2F: 2 fixed curved glass panel, 1 curved sliding door
  • W4: 4 curved sliding doors on 2 tracks

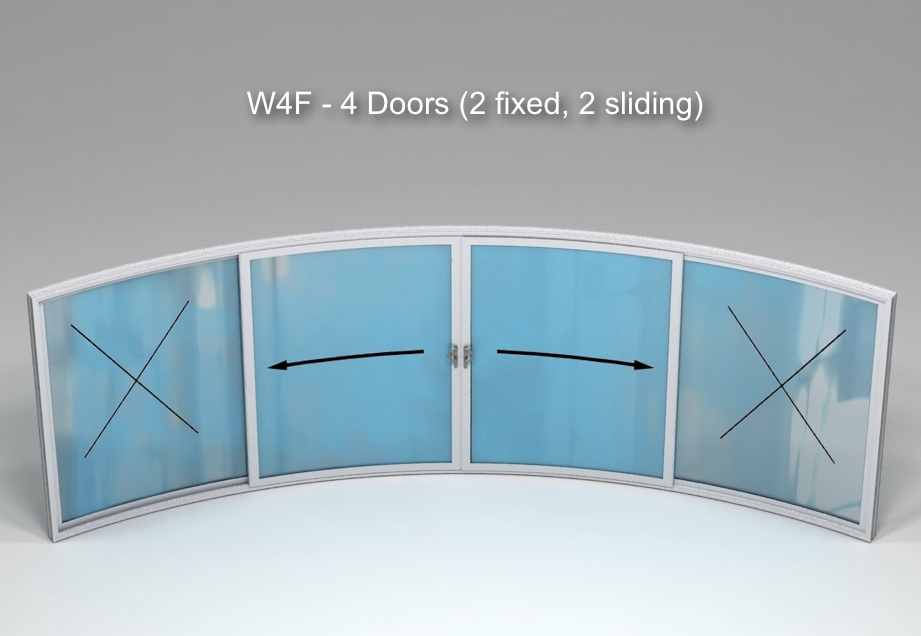

  • W4F:  2 fixed curved glass outer panels, 2 central curved sliding glass doors

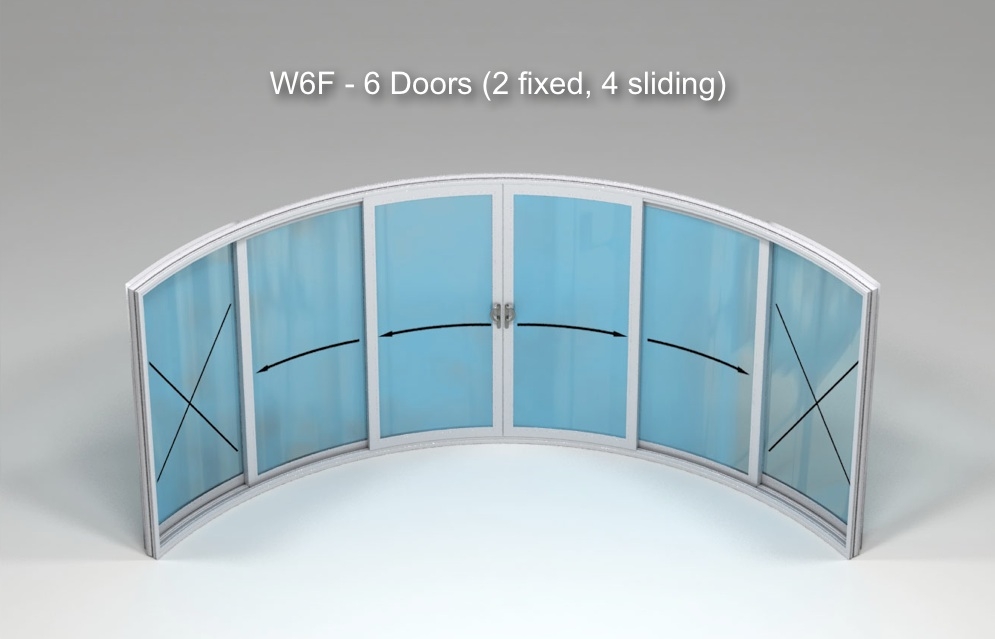

  • W6F: 2 outer fixed curved glass outer panels, 4 curved sliding doors  (two middle doors lock)
  • W6-4F: 4 fixed curved glass panels, 2 curved sliding doors
  • W8-4F: 4 fixed curved glass panels, 4 curved sliding doors
  • W8-6F: 6 fixed curved glass panels, 2 curved sliding doors

CUSTOM CONFIGURATIONS FOR CURVED PATIO DOORS

There are several options of models and further combinations that can be made between fixed and sliding elements, and so very large openings can be made using a combination of sliding and fixed panes all in one set of doors. We have made door sets as large as 13 metres long. Please contact us with your requirements and we can advise on the best options for you.

Curved Glass Sliding Doors
W6

TECHNICAL DETAILS FOR CURVED PATIO DOORS

Please follow this link for more technical details about our curved patio doors.

COSTING YOUR CURVED PATIO DOORS ONLINE

Once you have decided on the configuration and dimensions you require, you can get a quote online for how much your curved sliding glass doors will cost.

If you have any questions at all about our curved patio doors or something does not seem quite clear, please feel free to contact us.
